Application:
As a general all kinds of mechanical vibration excitation source, the product can be widely used in mining, metallurgy, coal, power, construction, chemical, foundry, light and food industries. CVM series of single, three-phase standard type vibration motor with a light weight, small size, easy adjustment of vibrating force, insulation levels and high level of protection.
This series Product can replace ITALVIBRAS (MARTIN), URAS, VIMARC, INVICTA other foreign companies produced the vibration motor. can be used for Vibrating feeder, vibrating conveyor, vibrating screen, vibrating shakeout machine, vibrating polisher processor, vibration and dryer anti-vibration silo plug device, massage chairs.
1. Advanced design
All the parameter calculation and design optimization are conducted by computer. Our precise manufacturing techniques and rigid quality control system can guarantee that the related components work together on a desirable condition during the operation of our vibration motor.
2. Special electromagnetic design
The rotor and stator of the motor are both made of premium silicone steel sheet with great magnetic conductivity, remarkably reducing the eddy-current loss of the iron core. Thus a powerful starting torque can be achieved, making the rotor reach the operation speed in as short time.
3. Heavy load bearing
All the bearings of the vibration motor are specially designed heavy load bearings, which can endure and transfer radical exciting force and axial load. The thermal dissipation performance is excellent. The double sealing design gives the bearing compartment great dustproof property. The high temperature resistant lithium-based grease is adopted for longer service life of the bearings.
4. Stepless adjustment
A precise dial is marked on the eccentric blocks at the both sides of the vibration motor. So it is easy adjust the exciting force and working torque steplessly from Zero to the maximum values.
5. Flexible power supply.
Can be single phase or Triple phase, 220V or 380V, depends on the model.
Just Contact us for details.
| Model | Power Supply | Output Power | Vibrating Amplitude | Centrifugal Force | Current | Weight |
| | V/Hz | kW | mm | kN | A | kg |
| CVM3 | 380/50 | 0.03 | 1.5 | 0.3-0 | 0.15 | 4.4 |
| CVM9 | 380/50 | 0.09 | 2.1 | 1-0 | 0.19 | 4.4 |
| CVM18 | 380/50 | 0.18 | 2.3 | 1 | 0.37 | 7.5 |
| CVM25 | 380/50 | 0.25 | 1.8 | 1.8 | 0.67 | 12 |
| CVM55 | 380/50 | 0.55 | 1.64 | 4.15 | 1.3 | 21.5 |
| CVM80 | 380/50 | 0.8 | 2 | 2.6 | 1.74 | 27 |
| CVM110 | 380/50 | 1.1 | 2 | 4.3 | 2.52 | 27 |
| CVM150 | 380/50 | 1.5 | 2.4 | 8.3 | 3.18 | 38 |
| CVM220 | 380/50 | 2.2 | 2.2 | 10 | 4.6 | 46 |
| CVM300 | 380/50 | 3 | 2.2 | 14 | 6.4 | 57 |
Product Tags:
|
|

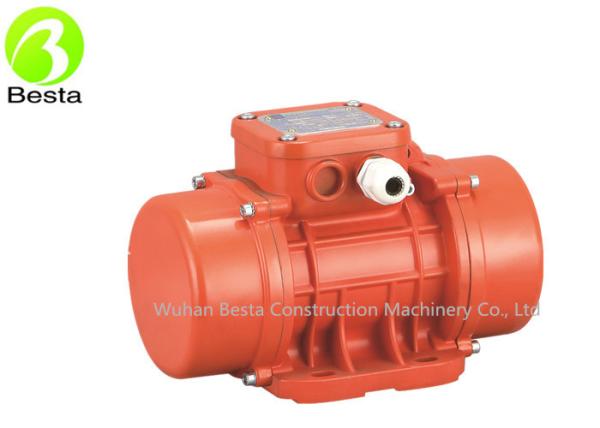

1.1kw Copper Coil High Frequency Vibration Motor 27kg CVM110 220V or 380V Images
|
